E10C0 Rotary Damper

The torque of the rotary damper changes according to the change of the rotation speed. The law of change is: the speed increases, the torque also increases. The speed slows down, and the torque drops with it. ▲The torque at start is different from the standard torque. temperature characteristics The torque of the rotary damper changes according to the temperature of the operating environment. The change rule is: when the ambient temperature increases, the torque decreases, and when the ambient temperature decreases, the torque increases. This is because the viscosity of the viscous oil in the damper also changes when the ambient temperature changes. However, when the ambient temperature returns to normal temperature, the torque also returns to its original value.

Category:

Rotary damper

Hotline:

+86-755-8925 3101

Messages

Detailed

Commodity name: E10C0 Rotary Damper

Product Specifications

model	torque	Torque output direction
E10C0-B200（G*）	（2±0.7）×10^-3N·m 20±7gf.cm	Bidirectional
E10C0-B400（G*）	（4±1.0）×10^-3N·m 40±10gf.cm	Bidirectional
E10C0-B600（G*）	（6±1.5）×10^-3N·m 60±15gf.cm	Bidirectional
E10C0-B800（G*）	（8±2）×10^-3N·m 80±20gf.cm	Bidirectional

Note 1) Standard torque is 30 rpm and data at 23±2 degrees Celsius.

Note 2) Add G to the end of the model number for gears.

Note 3) Special order is available by changing the viscosity of the shock absorber oil.

product description

Use rotation speed	50 rpm (single direction rotation)
usage frequency	10 times/min (1 time is positive 360° and reverse 360°)
Operating temperature range	-5~50℃
Material of housing and end caps	PC plastic
Rotary shaft material	POM plastic
gear material	POM plastic
use oil	silicone oil

Gear Specifications

gear tooth profile	Standard spur gear
tooth shape	Involute tooth profile
pressure angle	20°
gear module	0.6
number of teeth	11
Base pitch diameter	6.6

Damper Characteristics

1. Speed characteristics

▲The torque at start is different from the standard torque.

2. Temperature characteristics

The torque of the rotary damper changes according to the temperature of the operating environment. The change rule is: when the ambient temperature increases, the torque decreases, and when the ambient temperature decreases, the torque increases. This is because the viscosity of the viscous oil in the damper also changes when the ambient temperature changes. However, when the ambient temperature returns to normal temperature, the torque also returns to its original value.

Specific usage:
1. Gear and rack coordination (workpiece linear motion)

2. Gear and gear coordination (workpiece rotary motion, with angle limit)

3. Gear and gear coordination (no angle limit)

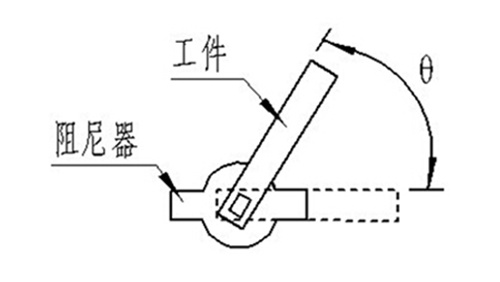

4. The workpiece is directly connected to the damper rotary shaft

Precautions:

1. Radial load state

When the rotary shaft (gear) is subjected to radial load, it may cause oil leakage, poor torque, or damage to the body (if the gear is equipped, the gear may be damaged or fall off).

2. Axial tensile load state

●When the rotary shaft (gear) is subjected to an axial tensile load, it may cause oil leakage, poor torque, or damage to the body (if the gear is equipped, the gear may be damaged or fall off).

●When assembling, please install the gear of the combination side and the gear of the buffer with the parallelism as much as possible.

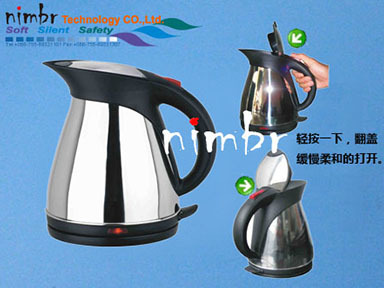

Application

Dimensions
