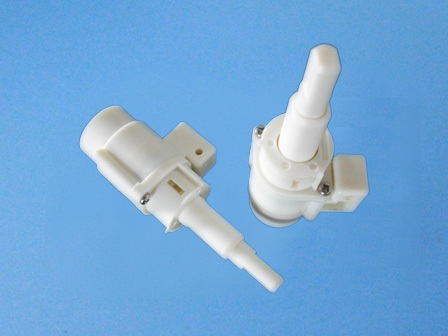

N30B0 Rotary Buffer
Category:
Rotary buffer
Hotline:
- Detailed
-
Specification
model Thin shaft output torque Coarse shaft output torque Torque output direction N30B0-R103.153
1.0N·m
(10Kgf.cm)
1.5N·m
(15kgf.cm)
Clockwise direction N30B0-R133.183
1.3N·m
(13Kgf.cm)
1.8N·m
(18kgf.cm)
Clockwise direction N30B0-R153.203
1.5N·m
(15Kgf.cm)
2.0N·m
(20kgf.cm)
Clockwise direction N30B0-R183.233
1.8N·m
(18Kgf.cm)
2.3N·m
(23kgf.cm)
Clockwise direction N30B0-R203.253
2.0N·m
(20Kgf.cm)
2.5N·m
(25kgf.cm)
Clockwise direction N30B0-R203.303
2.0N·m
(20Kgf.cm)
3.0N·m
(30kgf.cm)
Clockwise direction Note (1) The specification torque is the data when the temperature is 23±2℃.
Note (2) Special torque customization can be provided by changing the viscosity of the buffer viscous oil;
Maximum use angle 120°
Maximum operating temperature range -5~50℃
The material of the product shell ZDC
Rotary shaft material ZDC
use oil silicone oil Dimensions
Instructions for use
1. When the N30B0 series rotary buffer starts to fall from the vertical position as shown in Figure A to the horizontal position, since the designed torque is the weakest at the starting position, the torque gradually increases with the rotation of the buffer angle, so the action of the cover can be Finally close slowly. As shown in Figure B, when the cover starts to fall from the horizontal position, the torque generated by the gravity of the cover is zero in the vertical direction, and the torque of the buffer is the largest in the final position, so the cover cannot be fully closed.
2. When using the rotary damper in the example shown in the figure, please calculate the required torque according to the following calculation method.
example:
Cover weight M: 1.0kg
The length L of the rotating shaft from the edge of the cover plate: 0.4mThe weight of the seat ring M=1.3kg
The length of the rotating shaft from the edge of the seat ring L: O.4m
The load torque of the toilet cover: T=1.0*9.8*0.4/2=1.96N.m
Load torque of seat ring: T=1.3*9,8*0.4/2=2.55N.m
From the above calculation, we select the buffer as N30B0-R203.2533. Please minimize the gap between the rotary shaft and the joint parts. If there is a gap, the speed of the cover plate will be affected when it is rotated and dropped.
4. The torque of the shock absorber also changes according to the change of the ambient temperature. The change rule is that when the ambient temperature increases, the torque decreases, and the action time is accelerated. When the ambient temperature decreases, the torque increases and the action time slows down. This is because the viscosity of the viscous oil also changes when the ambient temperature changes. But when the ambient temperature returns to normal temperature, the torque will also return to its original value.
5. The rotation angle of the N30B0 series rotary buffer is 120 degrees. If the rotation exceeds 120 degrees, the buffer may be damaged. Please install a stop mechanism externally. The angle of action is based on the closed position.
6. Since the N30B0 rotary buffer can control the slow fall of the cover plate and the seat ring at the same time, in the design, the torque generated by the gravity of the cover plate and the torque generated by the gravity of the seat ring should not exceed 10%, otherwise the buffer effect will be affected. .
7. The torque generation direction of the buffer varies according to the structure of the buffer. Please select the appropriate buffer according to different usage methods.
