N19 series rotary buffer

When the N19D0 series rotary buffer starts to fall from the vertical position as shown in Figure A to the horizontal position, since the designed torque is the weakest at the starting position, with the rotation of the buffer angle, the torque gradually increases, so the action of the cover can be slow at the end. close. As shown in Figure B, when the cover starts to fall from the horizontal position, the torque generated by the gravity of the cover is zero in the vertical direction, and the torque of the buffer is the largest in the final position, so the cover cannot be fully closed.

Category:

Rotary buffer

Hotline:

+86-755-8925 3101

Messages

Detailed

Commodity name: N19 series rotary buffer

model	torque	reverse torque	Torque output direction
N19D(J)*-R103	1N·m (10Kgf.cm)	0.3N·m (3kgf.cm)	Clockwise direction
N19D(J)*-L103	1N·m (10Kgf.cm)	0.3N·m (3kgf.cm)	counterclockwise
N19D(J)*-R203	2N·m (20Kgf.cm)	0.6N·m (6kgf.cm)	Clockwise direction
N19D(J)*-L203	2N·m (20Kgf.cm)	0.6N·m (6kgf.cm)	counterclockwise
N19D(J)*-R303	3N·m (30Kgf.cm)	1.0N·m (10kgf.cm)	Clockwise direction
N19D(J)*-L303	3N·m (30Kgf.cm)	1.0N·m (10kgf.cm)	counterclockwise

Note (1) The specification torque is the data when the temperature is 23±2℃.

Note (2) The white end caps are counterclockwise torque output products, and the black end caps are clockwise torque output products;

Note (3) Special torque customization can be provided by changing the viscosity of the buffer viscous oil;

Note (4) "*" in the model number is a number from 0 to 5, corresponding to different installation methods, and "J" in the model number indicates the product whose rotating shaft is a metal shaft

Maximum use angle	110°
Maximum operating temperature range	-5~50℃
Material of housing and end caps	PBT plastic
Rotary shaft material	PPS plastic
use oil	silicone oil

Different installation specifications

model	N19D0	N19D1	N19D2	N19D3	N19D4	N19D5	N19J0	N19J1
Rotary shaft material	PPS	PPS	PPS	PPS	PPS	PPS	PPS	PPS
Rotation shaft length	20mm	20mm	10mm	10mm	25mm	25mm	20mm	20mm
Length of rear mounting position	3mm	5mm	3mm	5mm	3mm	5mm	3mm	5mm
product weight	14.6±1g	14.8±1g	10.3±1g	10.5±1g	11.5±1g	11.8±1g	26.5±1g	26.7±1g

Dimensions

Instructions for use

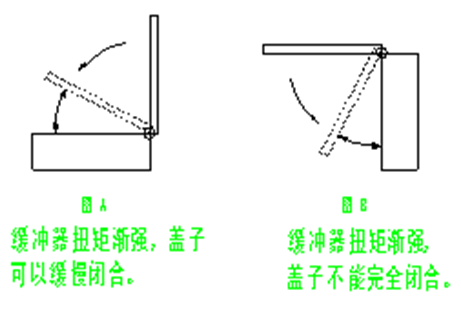

1. When the N19D0 series rotary buffer starts to fall from the vertical position as shown in Figure A to the horizontal position, since the designed torque is the weakest at the starting position, the torque gradually increases with the rotation of the buffer angle, so the action of the cover can be Finally close slowly. As shown in Figure B, when the lid starts to fall from the horizontal position, the torque generated by the gravity of the lid is zero in the vertical direction, and the torque of the buffer is the largest in the final position, so the lid cannot be fully closed.

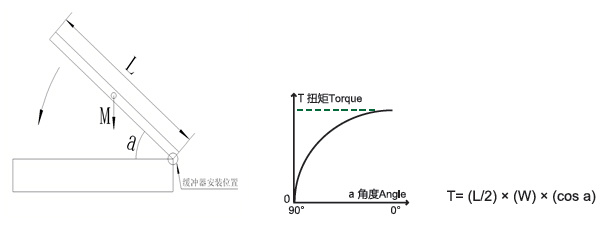

2. When using the rotary damper in the example shown in the figure, please calculate the required torque according to the following calculation method.

example:

Cover weight M: 1.5kg

The length L of the rotating shaft from the edge of the cover plate: 0.4m

Load torque: T=1.5×0.4×9.8÷2=2.9N•m

From the above calculation we select the buffer as N19D0-303.

3. Please minimize the gap between the rotary shaft and the joint parts. If there is a gap, the speed of the cover plate will be affected when it is rotated and dropped.

4. The torque of the shock absorber also changes according to the change of the ambient temperature. The change rule is that when the ambient temperature increases, the torque decreases, and the action time is accelerated. When the ambient temperature decreases, the torque increases and the action time slows down. This is because the viscosity of the viscous oil also changes when the ambient temperature changes. But when the ambient temperature returns to normal temperature, the torque will also return to its original value.

5. The rotation angle of the N19D0 series rotary buffer is 110 degrees. If the rotation exceeds 110 degrees, the buffer may be damaged. Please install a stop mechanism externally. The angle of action is based on the closed position.

6. The torque generating direction of the buffer varies according to the structure of the buffer. Please select the appropriate buffer according to different usage methods.
