N16A0 series rotary buffer

When the N16A0 series rotary buffer starts to fall from the vertical position as shown in Figure A to the horizontal position, since the designed torque is the weakest at the starting position, the torque gradually increases with the rotation of the buffer angle, so the action of the cover can be slow at the end. close. As shown in Figure B, when the lid starts to fall from the horizontal position, the torque generated by the gravity of the lid is zero in the vertical direction, and the torque of the buffer is the largest in the final position, so the lid cannot be fully closed.

Category:

Rotary buffer

Hotline:

+86-755-8925 3101

Messages

Detailed

Commodity name: N16A0 series rotary buffer

Product Specifications

model	torque	reverse torque	Torque output direction
N16A0-R103	1.0N·m (10Kgf.cm)	0.3N·m (3kgf.cm)	Clockwise direction
N16A0-L103	1.0N·m (10Kgf.cm)	0.3N·m (3kgf.cm)	counterclockwise
N16A0-R203	2.0N·m (20Kgf.cm)	0.6N·m (6kgf.cm)	Clockwise direction
N16A0-L203	2.0N·m (20Kgf.cm)	0.6N·m (6kgf.cm)	counterclockwise
N16A0-R303	3.0N·m (30Kgf.cm)	1.0N·m (10kgf.cm)	Clockwise direction
N16A0-L303	3.0N·m (30Kgf.cm)	1.0N·m (10kgf.cm)	counterclockwise

Note)

1. The specification torque is the data when the temperature is 23±2℃.

2. Special torque customization can be provided by changing the viscosity of the buffer grease or changing the material.

Performance description

Maximum use angle	120°
Maximum operating temperature range	-5~50℃
The material of the product shell	ZDC
Rotary shaft material	ZDC
use oil	silicone oil

Instructions
1. When the N16A0 series rotary buffer starts to fall from the vertical position as shown in Figure A to the horizontal position, since the designed torque is the weakest at the starting position, the torque gradually increases with the rotation of the buffer angle, so the action of the cover can be Finally close slowly. As shown in Figure B, when the lid starts to fall from the horizontal position, the torque generated by the gravity of the lid is zero in the vertical direction, and the torque of the buffer is the largest in the final position, so the lid cannot be fully closed.

2. When using the rotary damper in the example shown in the figure, please calculate the required torque according to the following calculation method.

example:

Cover weight M: 1.5kg

The length L of the rotating shaft from the edge of the cover plate: 0.3m

Load torque: T=1.5×0.3×9.8÷2=2.205N•m

From the above calculation, we select the buffer as N16A0-R/L203.

3. Please minimize the gap between the rotary shaft and the joint parts. If there is a gap, the speed of the cover plate will be affected when it is rotated and dropped.

4. The torque of the shock absorber also changes according to the change of the ambient temperature. The change rule is that when the ambient temperature increases, the torque decreases, and the action time is accelerated. When the ambient temperature decreases, the torque increases and the action time slows down. This is because the viscosity of the viscous oil also changes when the ambient temperature changes. But when the ambient temperature returns to normal temperature, the torque will also return to its original value.

5. The rotation angle of the N16A0 series rotary buffer is 120 degrees. If the rotation exceeds 120 degrees, the buffer may be damaged. Please install a stop mechanism externally. The angle of action is based on the closed position.

6. The torque generating direction of the buffer varies according to the structure of the buffer. Please select the appropriate buffer according to different usage methods.

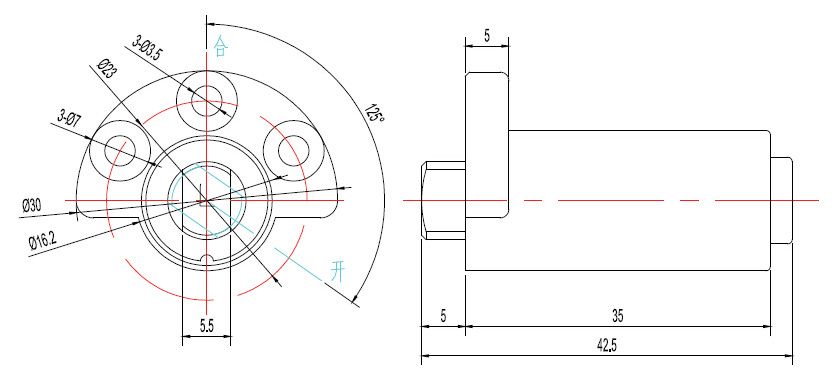

Dimensions
